Manufacturing test

Home Products

Our Products

We are one the leading service providers for Deck Sheet Laying , Fixing,Roofing , Cladding and Stud Welding We have a experienced team of around 50 people and can take up big projects all over India.
Deck Sheet Fixing Services
VIEW DETAILS
We are offering high quality Stud Welding Services to meet the requirements of our customers. These services are well designed and are highly reliable in nature.Features:ReliableDurableAffordable
STUD WELDING SERVICES
VIEW DETAILS
This is a resistance welding process in which energy is stored in a bank of capacitors by charging to a pre-set voltage and then discharged through a transformer. As very high current is passed in very short duration of time the resulting weld quality is excellent. CD Projection Welding Machine is ideally suitable for welding thick material within the shortest period. It is the best choice for bulk production within consistent quality for manufacture of wide range of products. As a leading manufacturer of stud and projection welding machines we ensure easy to operate range of machines with customization to meet the needs and demands of the clients.Advantages: Voltage fluctuations do not affect the weld quality.Low Installation and operating cost of the machine.Significant reduction in power (Kva) demand as compared to conventional resistance welding machines. (Typically a 15Kva stored energy projection welder can weld components, which could normally be achieved on 75 to 100 Kva conventional A.C. projection welder.Blackening and distortion at weld joint are hardly noticeable leading to excellent aesthetics and leaving almost no mark on the other side of the weld.Welding near heat sensitive parts is possible.Dissimilar metals welding possible.Machine can work on Generator set as it is operates on three phase.Minimum heating of components.Water-cooling not required for electrodes due to very short weld times. Cost of manufacture and maintenance of electrodes and fixtures is reduced considerably.Welding of heat sensitive parts possible.Applications Projection Nut/bolt welding Automobile components.Sheet metal fabrication. Auto electrical.Stainless steel cookware and kitchenwareLeak proof weldsFabricated stainless steel impellersSwitchgearWhitegoods (Refrigerators, Microwaves, water heaters)Control Panels and cabinetsCap nuts Carbon Brush assemblyHollow metal doors and clean-roomsAero engine & Aerospace componentsHeavy duty TransformersBatteriesHydraulicsName plate weldingSemiconductors Super market displaysDiamond toolsBall to Rod weldingBrake ShoeOil port to cylinder tube weldingRelays & switchgear components
Capacitor Discharge Projection Welding
VIEW DETAILS
Oorja Udyog’s Pneumatically operated pedestalspot/projection welders are widely used by the metalworkingindustries today because it offers the quickest and mosteconomical method of joining Weldable Base Metals. Thisgeneral purpose machine represents a new high achievementin welder design and engineering, and embodies advantageswhich afford the greatest performance. Its modern design hasincorporated ruggedness, accuracy, and reliable uninterruptedperformance – all of which are of utmost importance to high production runs.AdvantagesSome of the key features that set our machine ahead of the competition are:• Robust frame design• Adjustable upper ram, precision manufactured, with heavy duty guides tomaintain the tolerances• Exclusive use of copper core transformers• All copper is Electrolytic Grade• Designed and built in India• Frame: Rugged, heavy gauge, all steel body, strongly reinforced with weldedstiffeners and ribs on heavy duty base.• Accurately machined guide surfaces travel on anti-friction pads for low inertia,friction free movement.Applications• Nut/bolt welding• Automobile components.• Sheet metal fabrication.• Auto electrical.• Stainless steel cookware andkitchenware• Switchgear• Control Panels and cabinets• Hollow metal doors and clean-rooms• Aero engine & Aerospacecomponents• Heavy duty Transformers• Hydraulics• Super market displays• Whitegoods (Refrigerators,Microwaves, water heaters)STANDARD SPECIFICATIONS• KVA Sizes: 30, 50, 75, 100 or 150• Power Supply: 220 or 415 V, 50Hz
SPOT WELDING MACHINE
VIEW DETAILS

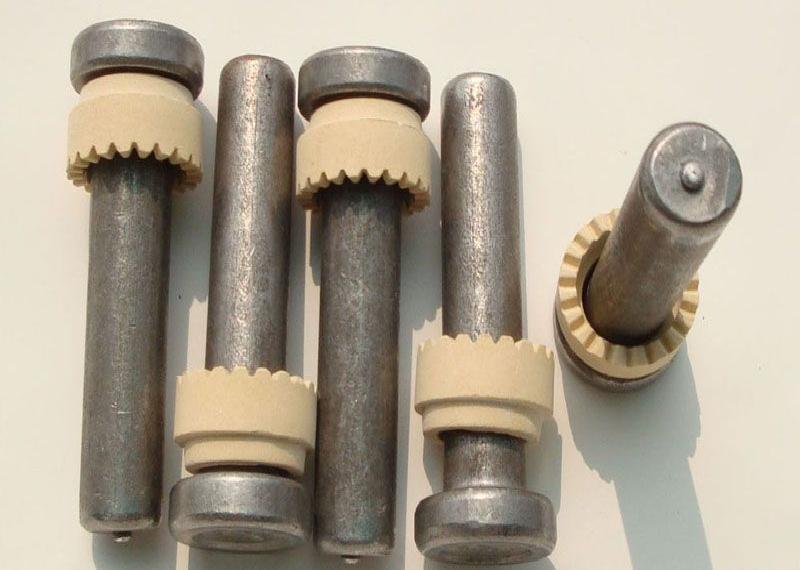

Our headed shear connectors can be used for welding on flat surfaces, inside/outside angles &
SHEAR CONNECTORS
VIEW DETAILS

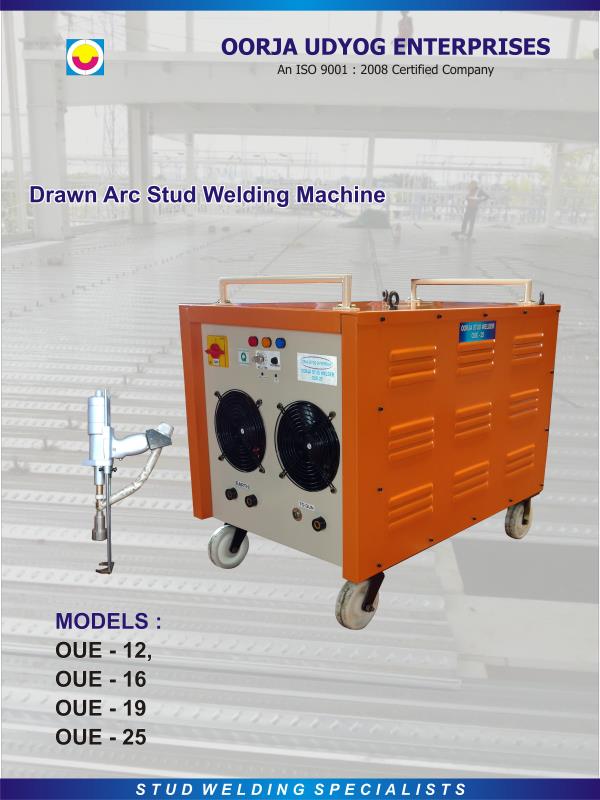

Drawn arc stud welding is a process by which a metal stud is joined to a metal work piece by heating both parts with an electrical arc. It permits strong, one-sided welds on base metals with thicknesses starting at 8 mm and produces welds in as little as 2500 millisecond. This method provides highly reliable fastening for a wide variety of applications and allows almost any size or configuration of a metal stud to be welded quickly to a work piece, while providing maximum weld penetration and reliability. Range & Model: • Weld Stud range from 3mm to 25mm• Models – OUE – 8, OUE –12, OUE –16, OUE –19, & OUE –25 Advantages of Drawn Arc: • High Weld strength – full cross-sectional weld. The bond is stronger than surrounding metal.• Filler material is not required therefore saving cost.• The one-sided fastening process permits greater design versatility• Increased productivity• Economic advantages- Savings on labor and fabrication costs• Simple in operation.Semi-skilled person can also do welding. Applications:• Construction – bridges, building, conduit & piping• Automotive• Furniture• Metal products• Industrial• Shipbuilding• Electrical & Electronic enclosures
Drawn Arc Stud Welding Machines
VIEW DETAILS

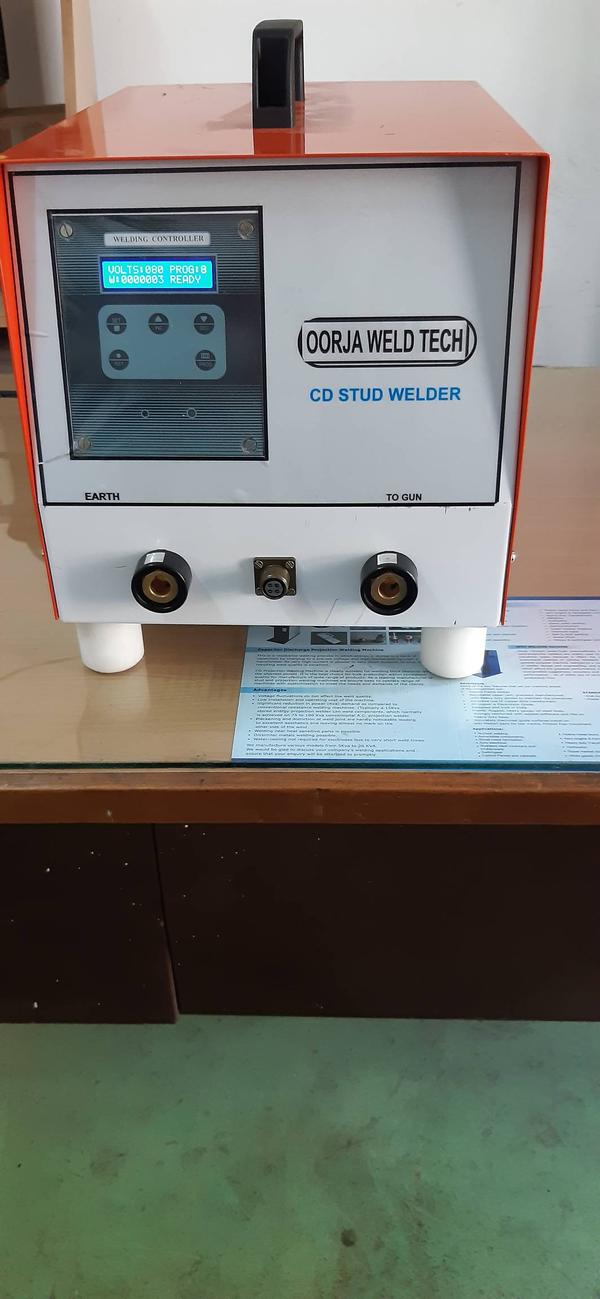

Capacitor Discharge Stud Welders– CD 08 & CD 10: We are proud to introduce a line of stud welding equipment. Our products are well known for quality and reliability, and these capacitor discharge welders are no exception. Users will be pleased with the sophisticated electronic features and outstanding welding quality with these compact, lightweight stud-welding units. In addition, the guns are small and light and offer individual settings for optimum weld quality. Superior reliability and ease of use makes these studs welding systems an excellent choice for many customers. CD Stud Welding Process: Due to the very short weld times, the CD welding process permits the welding of small-diameter studs to thin, lightweight materials. The weld cycle can be completed in 0.01 seconds on material as thin as 0.020
CD Stud Welding Machine Model- 08 & Mo

INR 70000

VIEW DETAILS

Filter using tags

We are one the leading service providers for Deck Sheet Laying , Fixing,Roofing , Cladding and Stud Welding We have a experienced team of around 50 people and can take up big projects all over India.
View Details
Deck Sheet Fixing Servic
We are offering high quality Stud Welding Services to meet the requirements of our customers. These services are well designed and are highly reliable in nature.Features:ReliableDurableAffordable
View Details
STUD WELDING SERVICES
This is a resistance welding process in which energy is stored in a bank of capacitors by charging to a pre-set voltage and then discharged through a transformer. As very high current is passed in very short duration of time the resulting weld quality is excellent. CD Projection Welding Machine is ideally suitable for welding thick material within the shortest period. It is the best choice for bulk production within consistent quality for manufacture of wide range of products. As a leading manufacturer of stud and projection welding machines we ensure easy to operate range of machines with customization to meet the needs and demands of the clients.Advantages: Voltage fluctuations do not affect the weld quality.Low Installation and operating cost of the machine.Significant reduction in power (Kva) demand as compared to conventional resistance welding machines. (Typically a 15Kva stored energy projection welder can weld components, which could normally be achieved on 75 to 100 Kva conventional A.C. projection welder.Blackening and distortion at weld joint are hardly noticeable leading to excellent aesthetics and leaving almost no mark on the other side of the weld.Welding near heat sensitive parts is possible.Dissimilar metals welding possible.Machine can work on Generator set as it is operates on three phase.Minimum heating of components.Water-cooling not required for electrodes due to very short weld times. Cost of manufacture and maintenance of electrodes and fixtures is reduced considerably.Welding of heat sensitive parts possible.Applications Projection Nut/bolt welding Automobile components.Sheet metal fabrication. Auto electrical.Stainless steel cookware and kitchenwareLeak proof weldsFabricated stainless steel impellersSwitchgearWhitegoods (Refrigerators, Microwaves, water heaters)Control Panels and cabinetsCap nuts Carbon Brush assemblyHollow metal doors and clean-roomsAero engine & Aerospace componentsHeavy duty TransformersBatteriesHydraulicsName plate weldingSemiconductors Super market displaysDiamond toolsBall to Rod weldingBrake ShoeOil port to cylinder tube weldingRelays & switchgear components
View Details
Capacitor Discharge Proj
Oorja Udyog’s Pneumatically operated pedestalspot/projection welders are widely used by the metalworkingindustries today because it offers the quickest and mosteconomical method of joining Weldable Base Metals. Thisgeneral purpose machine represents a new high achievementin welder design and engineering, and embodies advantageswhich afford the greatest performance. Its modern design hasincorporated ruggedness, accuracy, and reliable uninterruptedperformance – all of which are of utmost importance to high production runs.AdvantagesSome of the key features that set our machine ahead of the competition are:• Robust frame design• Adjustable upper ram, precision manufactured, with heavy duty guides tomaintain the tolerances• Exclusive use of copper core transformers• All copper is Electrolytic Grade• Designed and built in India• Frame: Rugged, heavy gauge, all steel body, strongly reinforced with weldedstiffeners and ribs on heavy duty base.• Accurately machined guide surfaces travel on anti-friction pads for low inertia,friction free movement.Applications• Nut/bolt welding• Automobile components.• Sheet metal fabrication.• Auto electrical.• Stainless steel cookware andkitchenware• Switchgear• Control Panels and cabinets• Hollow metal doors and clean-rooms• Aero engine & Aerospacecomponents• Heavy duty Transformers• Hydraulics• Super market displays• Whitegoods (Refrigerators,Microwaves, water heaters)STANDARD SPECIFICATIONS• KVA Sizes: 30, 50, 75, 100 or 150• Power Supply: 220 or 415 V, 50Hz
View Details
SPOT WELDING MACHINE
Our headed shear connectors can be used for welding on flat surfaces, inside/outside angles &
View Details
SHEAR CONNECTORS
Drawn arc stud welding is a process by which a metal stud is joined to a metal work piece by heating both parts with an electrical arc. It permits strong, one-sided welds on base metals with thicknesses starting at 8 mm and produces welds in as little as 2500 millisecond. This method provides highly reliable fastening for a wide variety of applications and allows almost any size or configuration of a metal stud to be welded quickly to a work piece, while providing maximum weld penetration and reliability. Range & Model: • Weld Stud range from 3mm to 25mm• Models – OUE – 8, OUE –12, OUE –16, OUE –19, & OUE –25 Advantages of Drawn Arc: • High Weld strength – full cross-sectional weld. The bond is stronger than surrounding metal.• Filler material is not required therefore saving cost.• The one-sided fastening process permits greater design versatility• Increased productivity• Economic advantages- Savings on labor and fabrication costs• Simple in operation.Semi-skilled person can also do welding. Applications:• Construction – bridges, building, conduit & piping• Automotive• Furniture• Metal products• Industrial• Shipbuilding• Electrical & Electronic enclosures
View Details
Drawn Arc Stud Welding M
Capacitor Discharge Stud Welders– CD 08 & CD 10: We are proud to introduce a line of stud welding equipment. Our products are well known for quality and reliability, and these capacitor discharge welders are no exception. Users will be pleased with the sophisticated electronic features and outstanding welding quality with these compact, lightweight stud-welding units. In addition, the guns are small and light and offer individual settings for optimum weld quality. Superior reliability and ease of use makes these studs welding systems an excellent choice for many customers. CD Stud Welding Process: Due to the very short weld times, the CD welding process permits the welding of small-diameter studs to thin, lightweight materials. The weld cycle can be completed in 0.01 seconds on material as thin as 0.020
View Details
CD Stud Welding Machine

INR 70000
